Shure MX202 MicroFlex Condenser Microphone With Inline Preamp

Name: Shure MX202 MicroFlex Condenser Microphone With Inline Preamp
Brand: Shure
SKU: LWM-01230
Price: 557.99 USD
Availability: PreOrder

SKU LWM-01230A

USD $557.99

Back-Order

Style:

Out of stock, available for back-order. Only pay 50% now then you would have the item(s) in your hands within 2-4 weeks!

Quantity:

Save this product to your Wish List for later

Shure MX202 MicroFlex Condenser Microphone With Inline Preamp

Product Details

Brand: Shure

Type: Condenser Mics

Accurate sound reproduction in an unobtrusive overhead microphone.

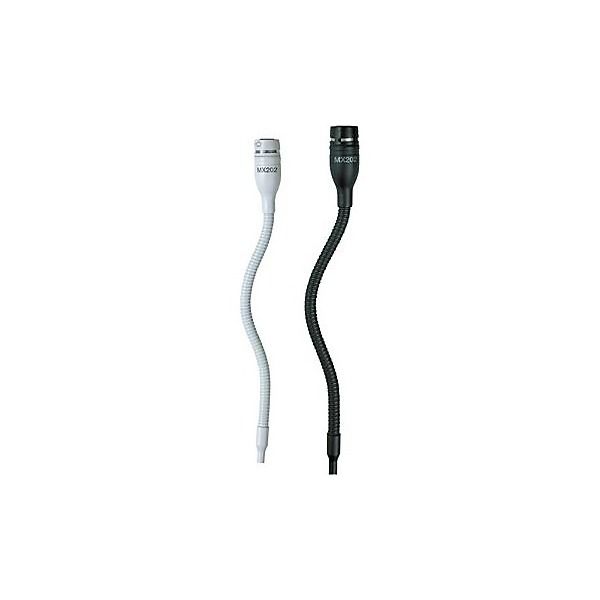

The MX202 MicroFlex condenser microphone captures Shure quality sound in a compact, adjustable package. The MX202 features a condenser microphone cartridge attached to a flexible, 4" gooseneck with a 30' cable. The inline preamp offers easy microphone stand or ceiling installation, and when combined with the high-sensitivity cartridge's wide frequency response, this microphone provides accurate sound reproduction with a minimum of RF interference or electromagnetic hum. The MX202 MicroFlex includes a mic stand adapter and requires phantom power.

It's also available with a plate-mounted preamp (see product #270396).

Features

Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
Balanced, transformerless output for increased immunity to noise over long cable runs
Supplied stand-mount adapter for portable applications

MX202 MicroFlex Condenser Microphone With Inline Preamp Specifications:

Frequency Response

50Hz–17kHz

Output Impedance

180 ohms actual (EIA rated at 150 ohms)
Sensitivity (At 1,000 Hz, open circuit voltage*)
Cardioid: -35.0 dBV/Pa (17.8 mV)
Supercardioid: -33.5 dBV/Pa (21.1 mV)
All values -12dB at 0 gain; *1 Pascal = 94dB SPL
Maximum SPL (1kHz at 1% THD, 1 kohm load)
Cardioid: 124.2dB
Supercardioid: 122.7dB
All values +6dB at 0 gain

Equivalent Output Noise (A-weighted)

Cardioid: 28dB SPL
Supercardioid: 26.5dB SPL

Signal to Noise Ratio (referenced at 94dB SPL)

Cardioid: 66dB
Supercardioid: 67.5dB

Dynamic Range at 1 kohm load

96.2dB
100dB at 0 gain

Common Mode Rejection

45dB minimum

Preamplifier Output Clipping Level (1% THD)

-6.0 dBV (0.5 V)
-12 dBV at 0 gain

Polarity

Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector

Power Requirements

11 to 52 Vdc phantom, 2.0 mA

Environmental Requirements

Operating Temperature Range: -18 to 57 degrees ºC (0 to 135 degrees ºF)

Relative Humidity

0 to 95%

Cable Length

9 m (30')
