1 DC IN. Use a 9 voltage DC power. Plug polarity is positive on the barrel and negative in the center.
LOW Knob. Adjust the low frequency under 250Hz. If the Low knob points at the center, no change of the frequency. Turn clockwise to maximum position, + 14dB will be amplified. Turn anti-clockwise to minimum position, - 14dB will be lost.
HIGH Knob. Adjust the low frequency above 1KHz. If the Low knob points at the center, no change of the frequency. Turn clockwise to maximum position, + 14dB will be amplified. Turn anti-clockwise to minimum position, - 14dB will be lost.
LEVEL Knob. Turn to change output level.
True Bypass Footswitch. Push down the footswitch to switch between effect On and bypass. The LED light also turns ON or OFF accordingly.
OUTPUT Jack. ¼ inch mono audio jack, for signal output.
INPUT Jack. ¼ inch mono audio jack, for signal input.

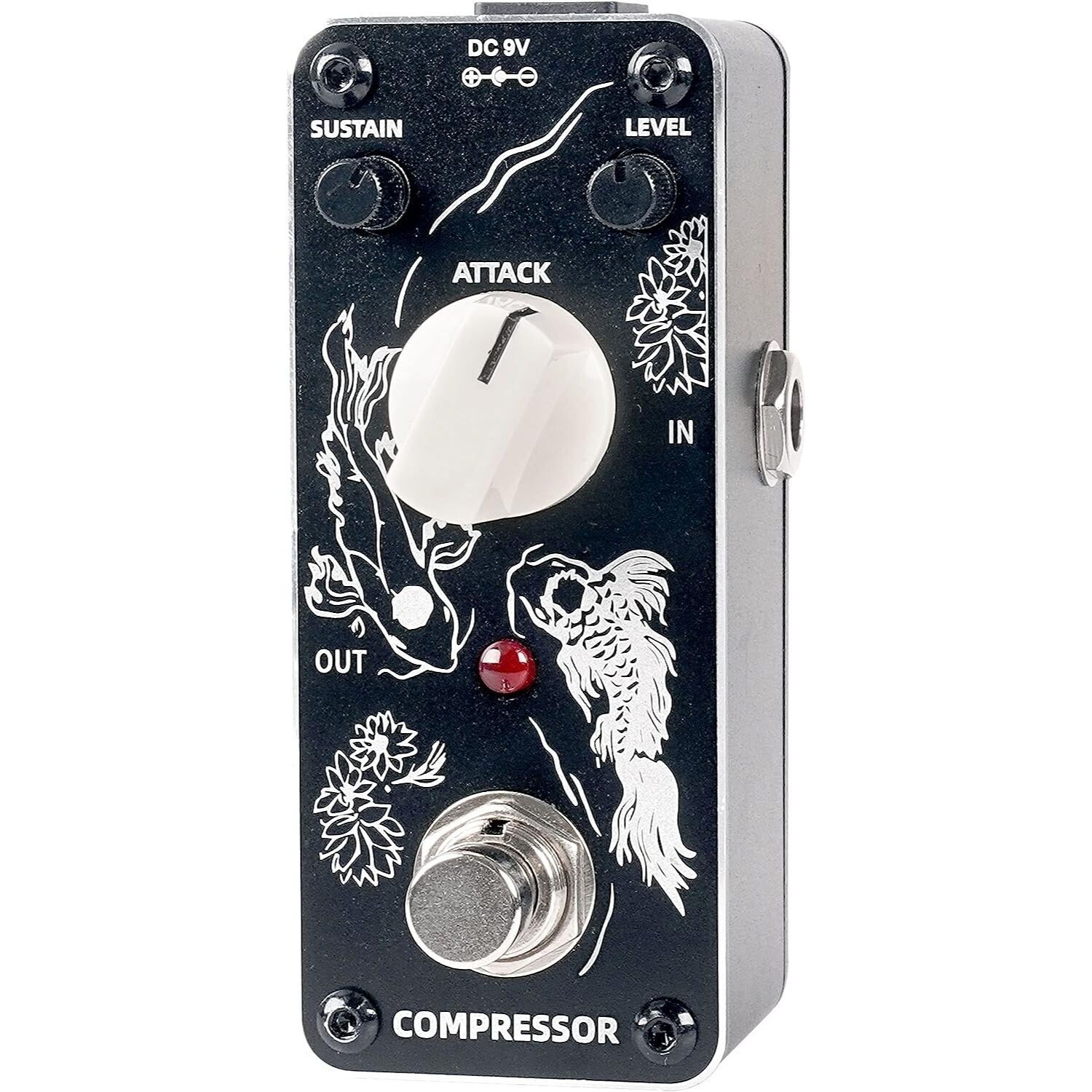

Compressor Pedal Parts Name and Functions
1 DC IN. Use a 9 voltage DC power. Plug polarity is positive on the barrel and negative in the center.
SUSTAIN Knob. Adjust the compression ratio, enabling to sustain for a longer time when the effect level is increased.
LEVEL Knob. Adjust the output volume.
ATTACK Knob. Adjust the attack time of the compression effect. Lower level gives a quick and tight response, higher level gives a slower and smoother response.
True Bypass Footswitch. Push down the footswitch to switch between effect On and bypass. The LED light also turns ON or OFF accordingly.
OUTPUT Jack. ¼ inch mono audio jack, for signal output.
INPUT Jack. ¼ inch mono audio jack, for signal input.
